Developing inspiration board to quickly deliver ideas

Before ideating our thoughts on sketches, we categorized several design directions to prevent us from getting lost or overlapping ideas while sketching. Several phases of moodboards were developed as we worked through the ideation phase and ideas became more clear and detailed.

Direction 1

Phase 1

Phase 2

-

Direction 2 / White & Pure

Phase 1

Phase 2

Phase 3

Direction 3 / Translucent

Phase 1

Phase 2

Phase 3

Direction 4

Phase 1

Phase 2

-

Direction 5 / Warm & Light

Phase 1

Phase 2

Phase 3

Quick Concept Modeling & Evaluation

Below are some quick modeling concepts to visualize our ideas in 3D that we found during the sketch phase. From this phase, we again narrowed down to 4 concepts to present and propose to our client.

Diversifying Concept Direction

Following are materials presented to LAVO on our first meeting. During this phase we focused on presenting various and wide design directions and clearly visualizing how these concepts may look. During this meeting, we were able to narrow down 2 concepts and we onto prototype verification phase after few adjustments.

Concept 1 / Thin Plate

Concept 2 / Transparent Metallic

Concept 3 / Translucent Gloss

Concept 4 / Mood Lamp

Creating Prototypes to Evaluate Design

Before requesting for a 1:1 scale hard-type prototype, we went made various soft mock-ups using blue foam and 3D printer to confirm our designs. After we verifying our concepts using these simple materials, we requested for a hard-type prototype to a prototyping factory to verify and confirm our designs in more details.

Considering for Both Users

Easy Maintenance for User

Front-end User

Removable cap and front plate for easy cleaning and replacing filters

Easy Procedure for Technitians

Back-end User

Easy product disassembly for technicians while the purifier is mounted on the wall.

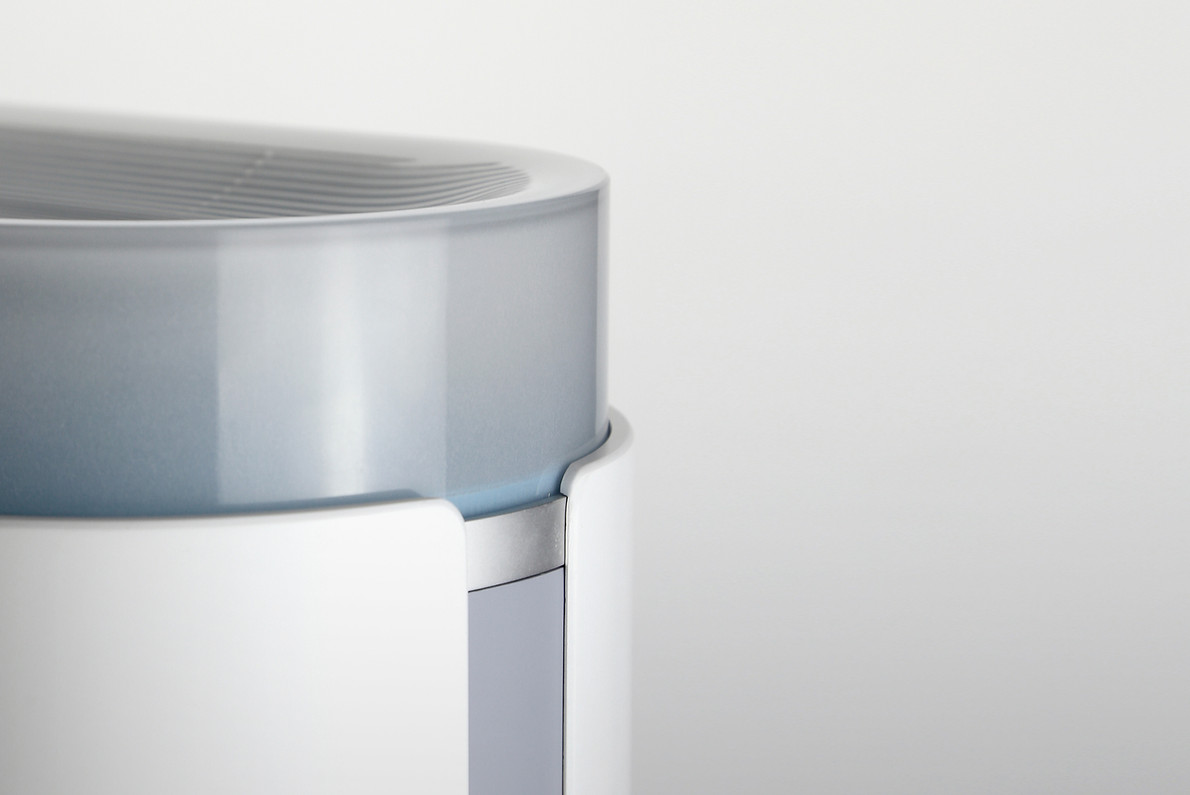

Model 1 / Translucent Gloss

Model 2/ Transparent Metallic

back
